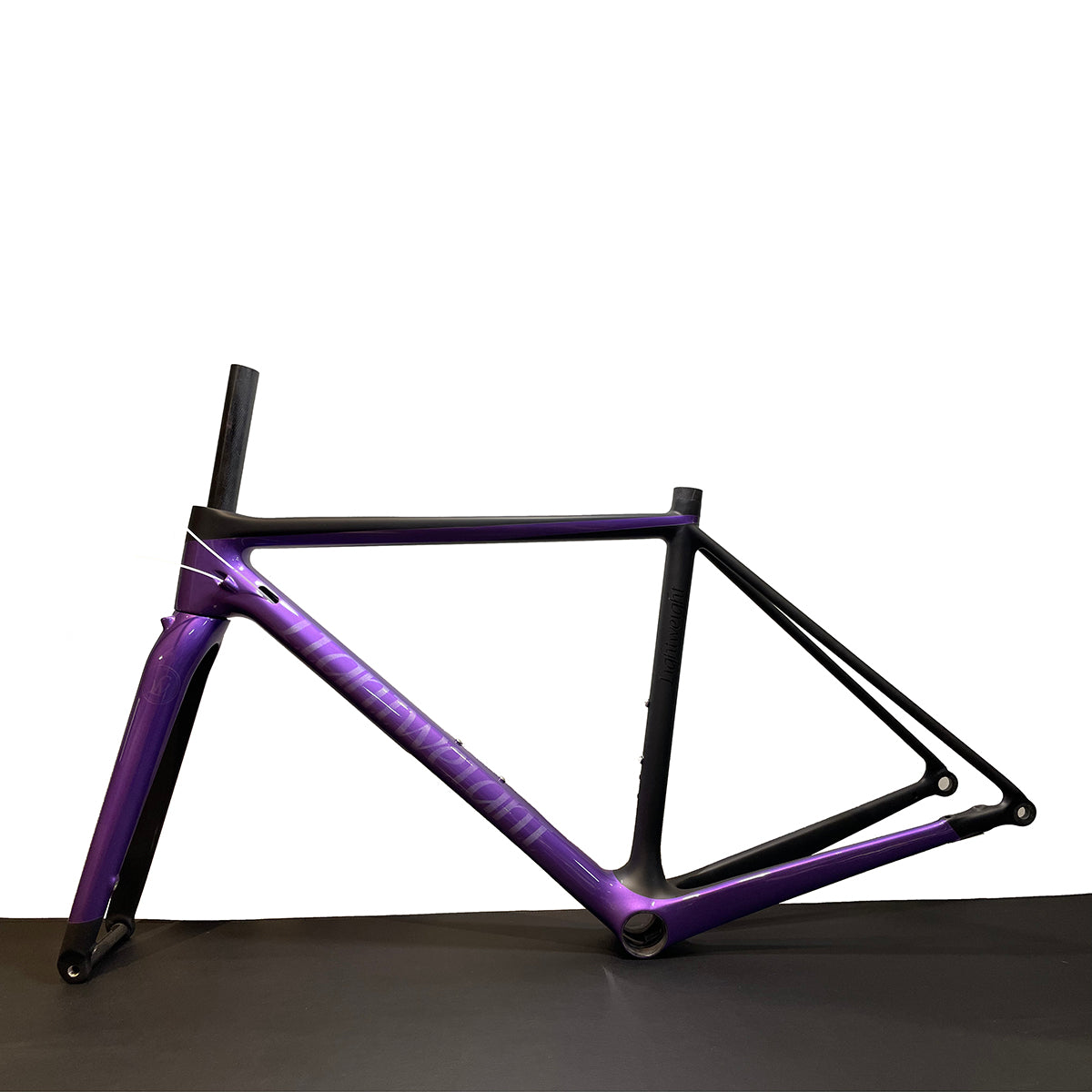

Lightweight - Urgestalt Disc Veloholic Ed.

Name: Lightweight - Urgestalt Disc Veloholic Ed.
Brand: Lightweight
Price: 4000.0 CAD
Availability: InStock

$4,000.00 ~~$7,000.00~~

Size48

ColorPurple

Purple Orange

Quantity

EFBE certified and perfectly matched to our wheels, racing bike frame
Maximum stiffness supports the performance of lightweight wheels
Increased riding comfort due to improved structure of carbon layers that have an optimized flow of forces
revised geometry of the rear end for an even more comfortable driving experience
System integration: Fiber construction and stiffness of the fork ensures the transmission of braking force into the frame and vertically supports comfort. Riding behaviour can be anticipate
Optimised power transmission to the road
Highest directional stability, improved balance

		48	51	54	56
A	Horizontal upper tube length	530 mm	530 mm	545 mm	560 mm
B	Measured size	480 mm	510 mm	540 mm	560 mm
C	Seat tube angle	74,5°	74,2°	73,5°	73,5°
D	Head tube angle	71,5°	72,2°	73°	73°
E	Chain stay length	410 mm	410 mm	410 mm	410 mm
F	Fork pre-bend	45 mm	45 mm	45 mm	45 mm
G	Bottom bracket lowering	72 mm	72 mm	69 mm	69 mm
H	Wheelbase	971,6 mm	978 mm	980,3 mm	995,5 mm
I	Head tube length	110 mm	120 mm	140 mm	155 mm
J	Stack	517,7 mm	529,6 mm	548,3 mm	562,7 mm
K	Reach	371,4 mm	380,2 mm	382,6 mm	393,3 mm
