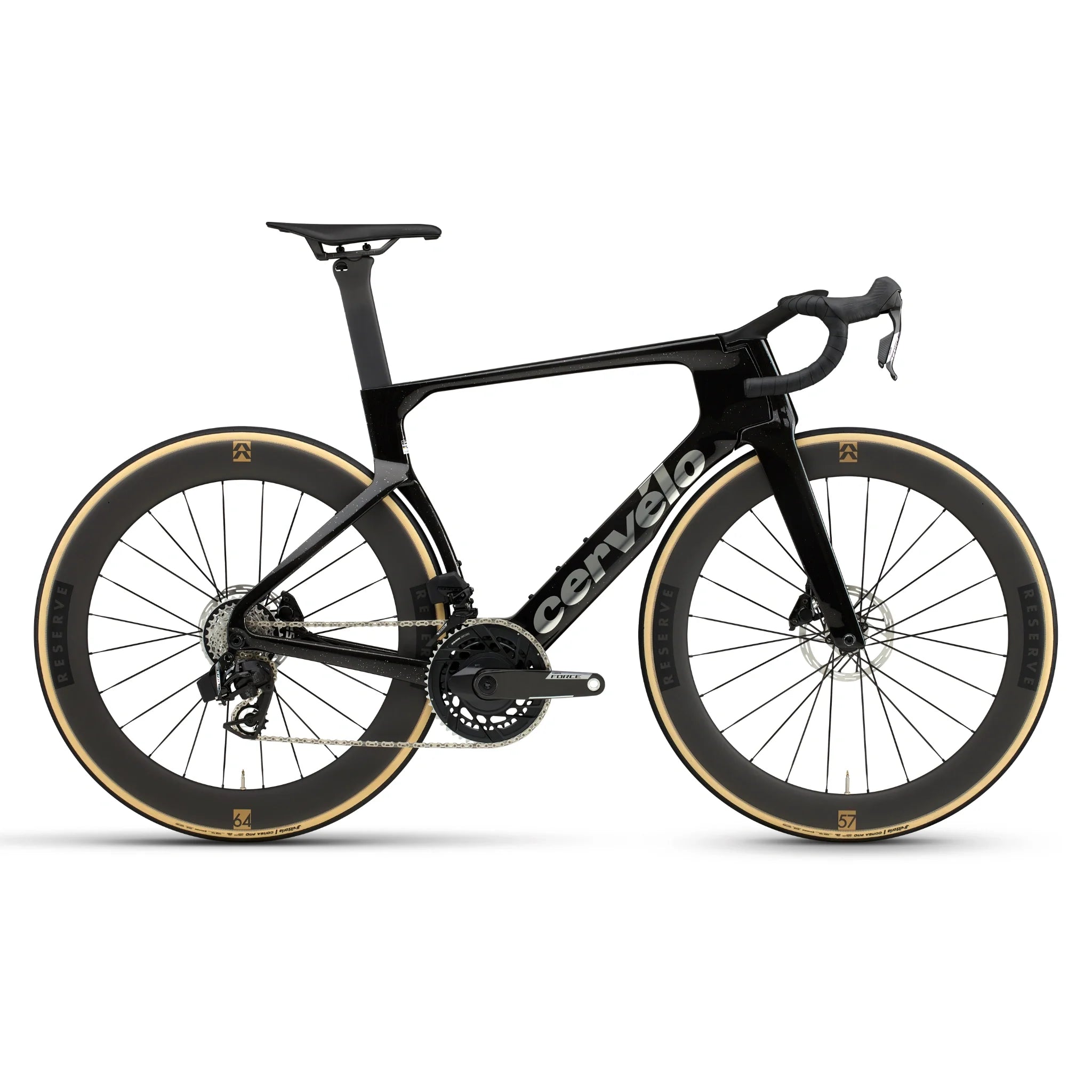

Cervelo S5 Force AXS E1 (2027)
IN-STORE PICKUP ONLY
The S5 is a sport-wide benchmark for speed and aerodynamic efficiency—with the race results to back it up. From Wout van Aert winning the Green Jersey by the biggest margin of victory in modern history, to Simon Yates riding himself into the maglia rosa, S5’s iconic V-stem and bayonet fork are a fixture at the front of the professional peloton. The new S5 builds on that legacy of speed by getting even faster.
The new bike is over 6 Watts faster than its predecessor, 124 grams lighter, and retains the handling, poise, and stability that riders everywhere love. The biggest changes are at the front of the bike, where the most significant aerodynamic performance comes from. The fork legs and head tube got quite a bit deeper, and the all-new, one-piece handlebar/stem builds on the original V-stem concept—and gets even faster.
Cervélo and Reserve co-developed the new Reserve 57|64 Turbulent Aero wheels specifically for use in the S5 frame, completing the aerodynamic system.
|
Component |
Specification |
|---|---|
|
Weight |
7.7 kg |
|
Fork |
Cervélo All-Carbon, Bayonet S5 Fork |
|
Rear Derailleur |
SRAM Force AXS E1 |
|
Front Derailleur |
SRAM Force AXS E1 |
|
Shifters |
SRAM Force AXS E1 |
|
Crankset |
SRAM Force AXS E1, 50/37T, DUB, with Power Meter |
|
Cassette |
SRAM Force E1, 10-33T, 12-Speed |
|
Chain |
SRAM Force E1 |
|
Bottom Bracket |
SRAM DUB, BBright |
|
Brake Rotors |
SRAM Paceline Centerlock |
|
Headset |
FSA IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45° |
|
Saddle |
Fizik Arione R1 |
|
1-Piece Handlebar/Stem |
Cervélo HB19 Carbon |
|
Handlebar Sizing |
Size 48 – 36cm; Size 51 – 38cm; Size 54 – 40cm; Size 56 – 40cm; Size 58 – 40cm; Size 61 – 40cm |
|
Stem Sizing |
Size 48 – 80mm; Size 51 – 90mm; Size 54 – 100mm; Size 56 – 100mm; Size 58 – 110mm; Size 61 – 120mm |
|
Seatpost |
Cervélo SP34 Carbon |
|
Seatpost Sizing |
Size 48 – 0mm; Size 51 – 0mm; Size 54 – 0mm; Size 56 – 0mm; Size 58 – 0mm; Size 61 – 15mm |
|
Front Thru Axle |
Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length |
|
Rear Thru Axle |
Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length |
|
Front Wheel |
Reserve 57TA, DT Swiss 240 Dicut, 12x100mm, 24H, Centerlock, Tubeless Compatible |
|
Rear Wheel |
Reserve 64TA, DT Swiss 240 Dicut, 12x142mm, XDR Freehub, 24H, Centerlock, Tubeless Compatible |
|
Tires |
Vittoria Corsa Pro TLR G2.0, 700x29c |
|
Crank Sizing |
Size 48 – 160mm; Size 51 – 165mm; Size 54 – 170mm; Size 56 – 170mm; Size 58 – 172.5mm; Size 61 – 172.5mm |
|
Accessories |
Cervélo Rear Accessory Mount; Cervélo Front Computer/Accessory Mount 266 |
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach | mm | 367 | 376 | 384 | 392 | 401 | 409 |
| Stack | mm | 496 | 519 | 542 | 565 | 588 | 608 |
| Head Tube Angle | 71° | 72° | 73° | 73.5° | 73.5° | 73.5 |
| Front Center | mm | 579 | 580 | 581 | 588 | 604 | 617 |
| Bottom Bracket Drop | mm | 74.5 | 74.5 | 72 | 72 | 69.5 | 69.5 |
| Head Tube Length | mm | 64 | 82 | 104 | 125 | 152 | 173 |
| Top Tube Length | mm | 520 | 535 | 550 | 565 | 581 | 595 |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° | 73 |
| Standover Height | mm | 712 | 734 | 758 | 781 | 804 | 822 |
| Trail | mm | 55.6 | 55.6 | 55.6 | 55.6 | 55.6 | 55.6 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset | mm | 58.5 | 52.5 | 46.5 | 43.5 | 43.5 | 43.5 |
| Wheelbase | mm | 973 | 974 | 975 | 982 | 999 | 1013 |
| Chainstay Length | mm | 405 | 405 | 405 | 405 | 405 | 405 |
