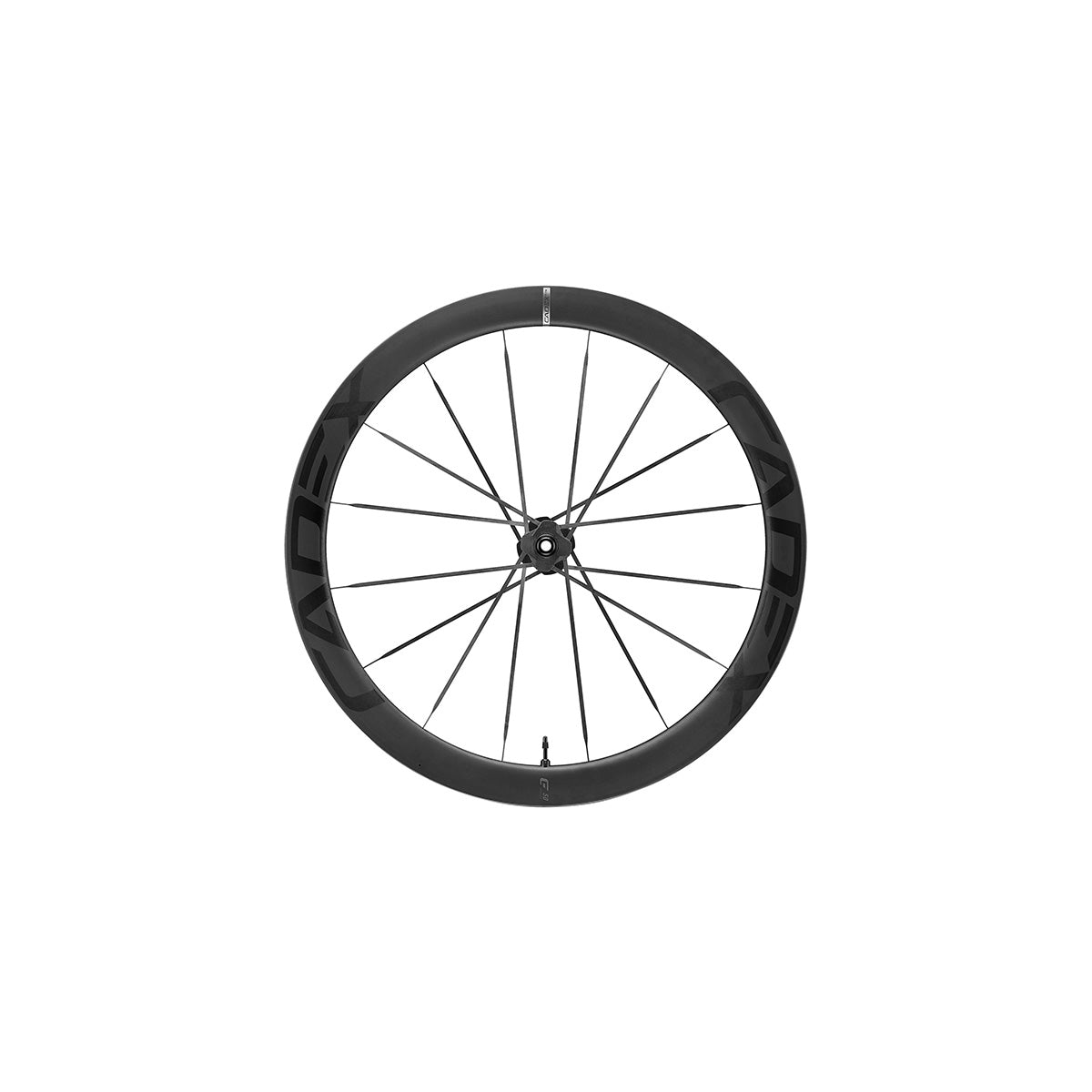

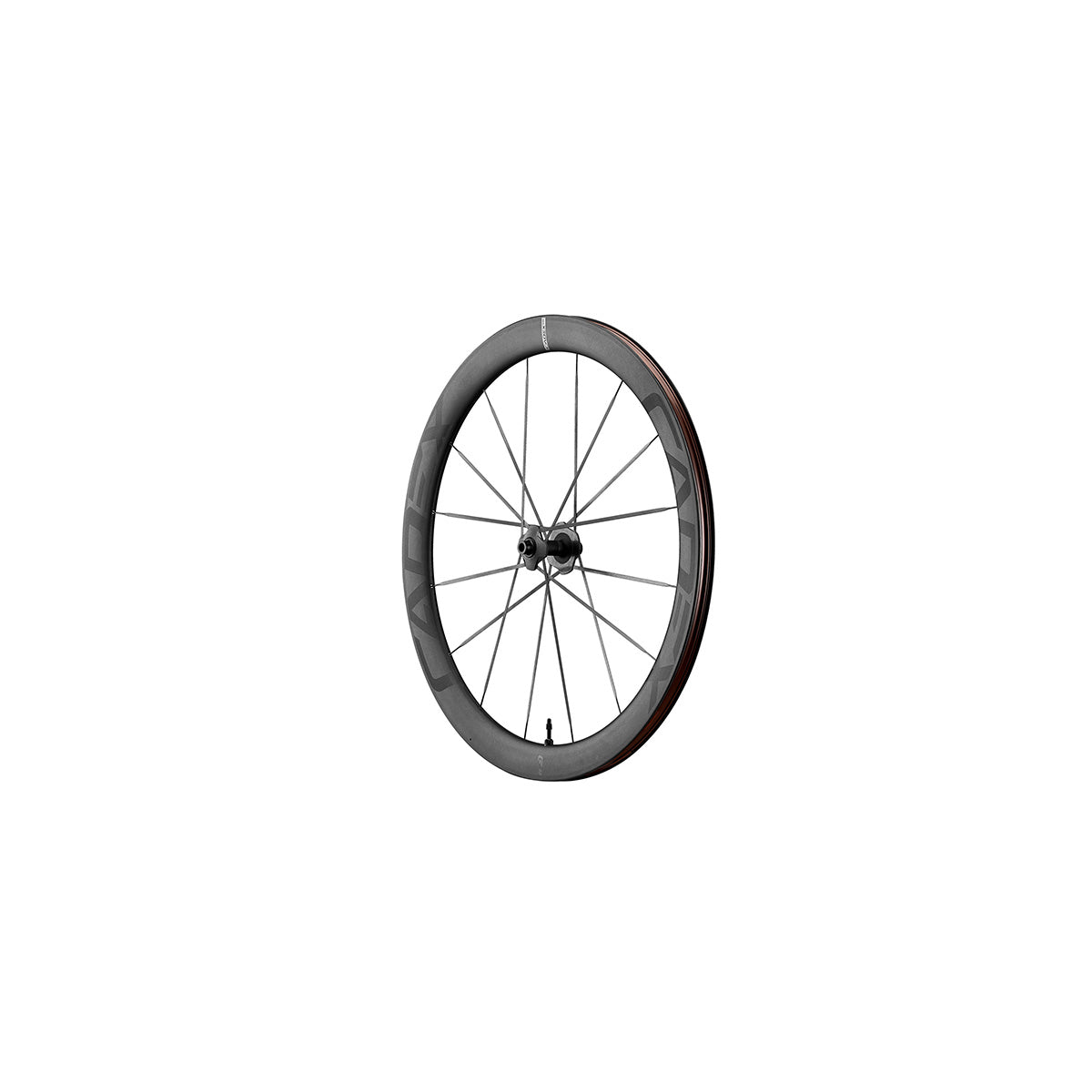

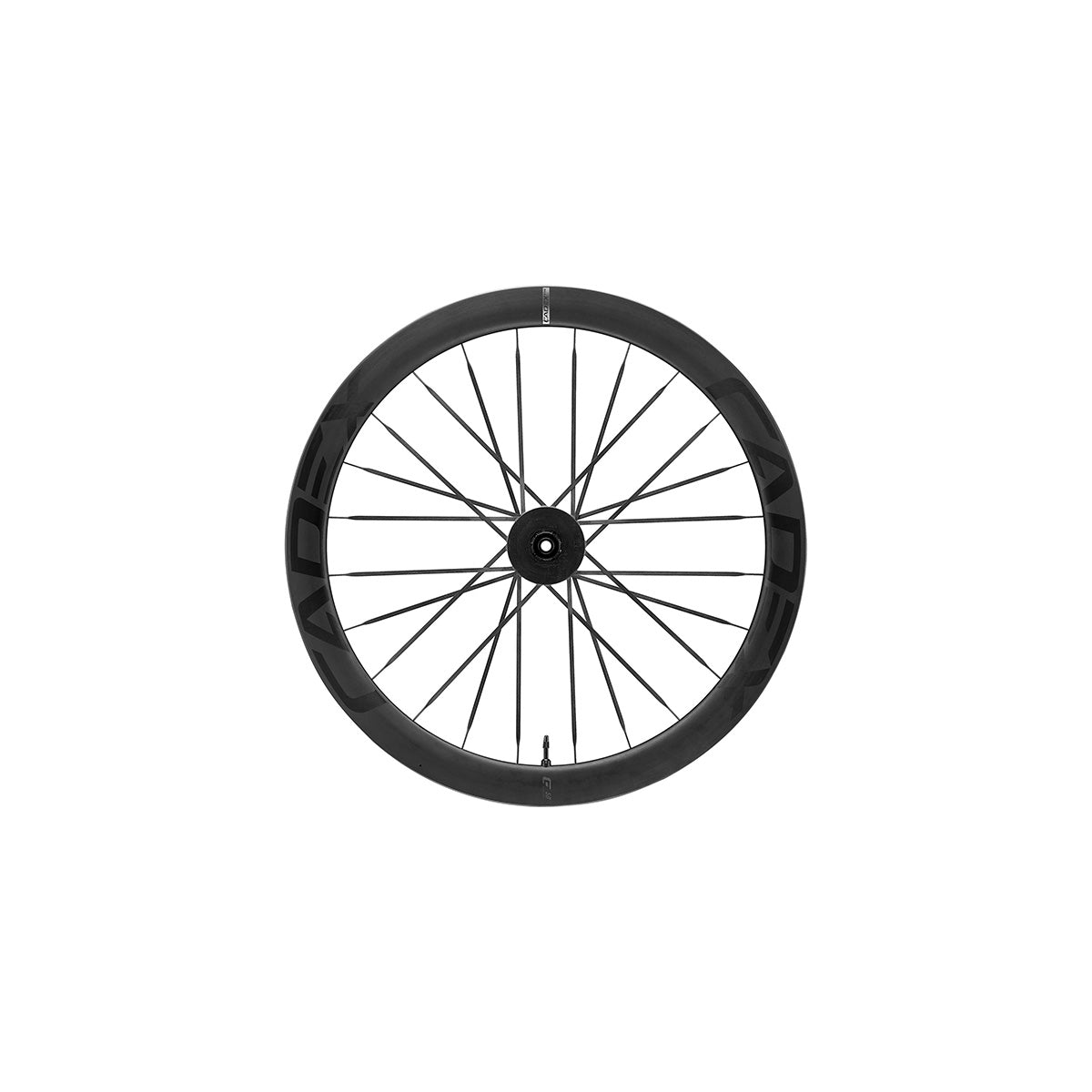

Cadex - Max 50 Disc Tubeless

$4,999.98
OptionsMax 50 Disc Tubeless Brake FW & RW - HG/XDR
The Max 50 WheelSystem delivers refined race-day performance throughan ultralight, super-stiff aero system. At 1290g, its Max integrated hub,Super Aero carbon spokes and Dynamic Balanced Lacing optimizeefficiency and power transfer for sharp acceleration and confident control.







      Specifications


      Rim Material: Carbon

      Rim Type: Hookless

      Tubeless: CADEX Tubeless System (rim tape and valves included)

      Suggested Tire Size: 700 x 25C – 700 x 32C

      Rim Height: 50mm

      Rim Outer Width: 30mmRim Inner Width 22.4mm

      ETRTO: 622-22

      Front Hub: CADEX R3 , Centerlock, One-piece integrated hub and spokes

      Rear Hub: CADEX R3-C48, Ratchet Driver, Centerlock, One-piece integrated hub and spokes

      Bearing: Ceramic

      Front Axle: 100x12 Thru Axle

      Rear Axle: 142x12 Thru Axle

      Spokes (Front): Super Aero Carbon Spoke

      Lacing (Front): DBL, 16H

      Spokes (Rear): Super Aero carbon

      Lacing (Rear): DBL, 24H

      Nipple: Integrated titanium

      Warranty: 2 years incident / 5 years warranty

      Weight without Valve and Tape: (Pair) 1250g

      Weight with Valve and Tape: (Pair) 1290g

      Hub Compatibility: Shimano / SRAM XDR / Campagnolo N3W





        Features

        • 50mm Aero Rim Profile – A deep 50mm rim profile maximizes aerodynamic efficiency,reducing drag for sustained high-speed performance in race conditions.
        • Integrated Max Hub And Spoke Technology – A one-piece hub, flange, spoke, and rimstructure forms a fully integrated system that minimizes drag, smooths airflow, andmaximizes real-world efficiency at speed.
        • Precision Reinforced Carbon Layup – High-tensile fibers are strategically placed onlywhere needed to create a strong, torsionally stiff structure while minimizing overallweight.
        • CADEX Super Aero Carbon Spokes – High-tensile integrated carbon spokes with hiddennipples and independent internal tensioning minimize lateral flex for efficient accelerationand responsive climbing.
        • Dynamic Balanced Lacing (DBL) – A wider bracing angle and balanced spoke tensionunder pedaling load result in a stiffer wheel with outstanding power transfer andhandling precision.
        • 22.4mm Inner Width – A wide 22.4mm internal rim creates a more efficient tire profilewith an increased contact patch, improving sidewall support and confident handling atspeed.
        • CADEX R3-C48 Aero Hub – An aerodynamic hub design with a 48-tooth ratchet deliversfast, direct engagement for immediate power transfer during accelerations and surges.
        • Ratchet Wave Spring System – A wave spring design ensures consistent, balancedratchet engagement, resulting in smoother operation and improved rolling efficiency.
        • CADEX Hookless Rim Technology – An optimized carbon layup and hookless rim designreduce weight while improving durability and tire stability under high-speed loads.
        • In-Mold Carbon Graphics – CADEX logos are integrated directly into the carbon surfacefor a clean, premium finish with no decals, no added weight, and no risk of fading.
