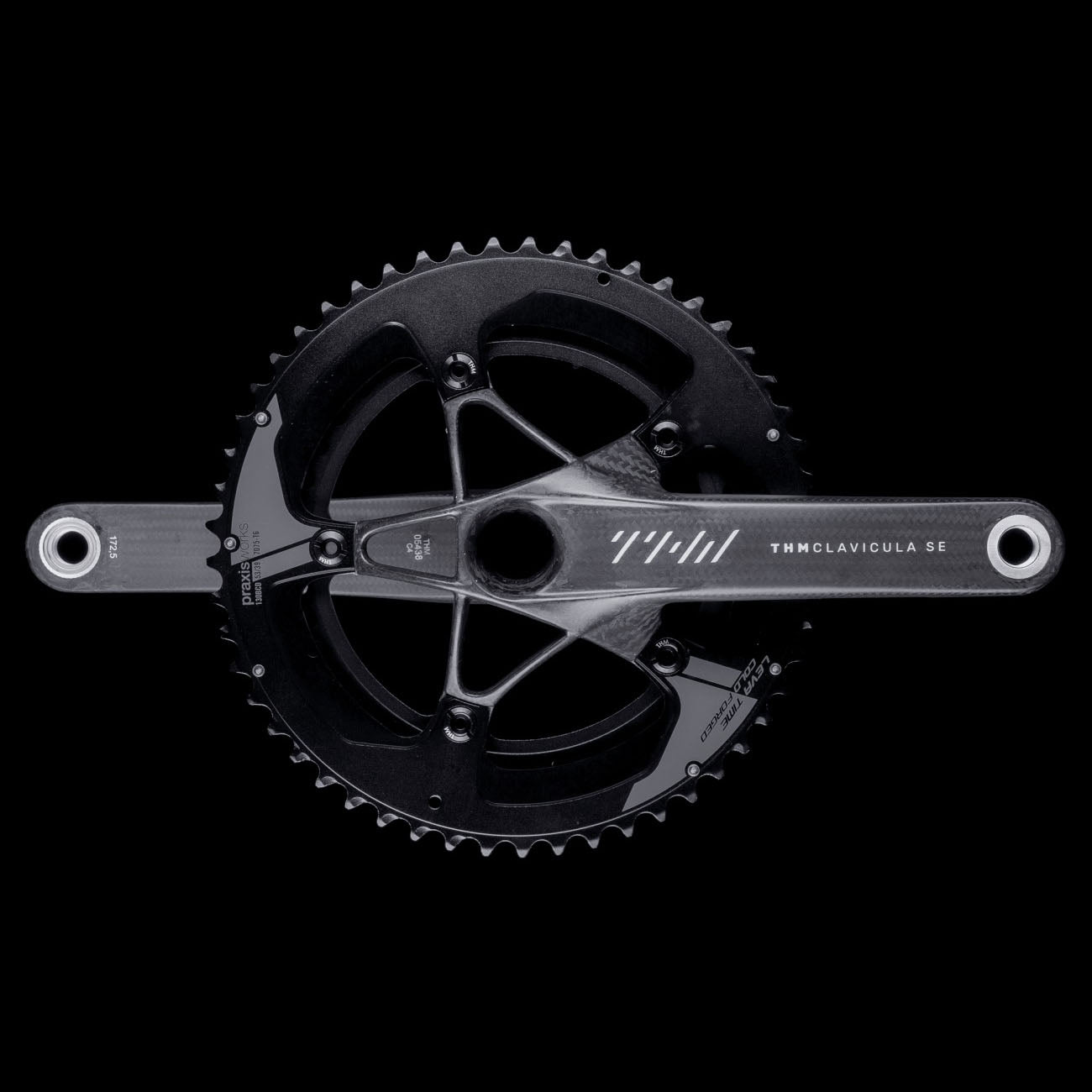

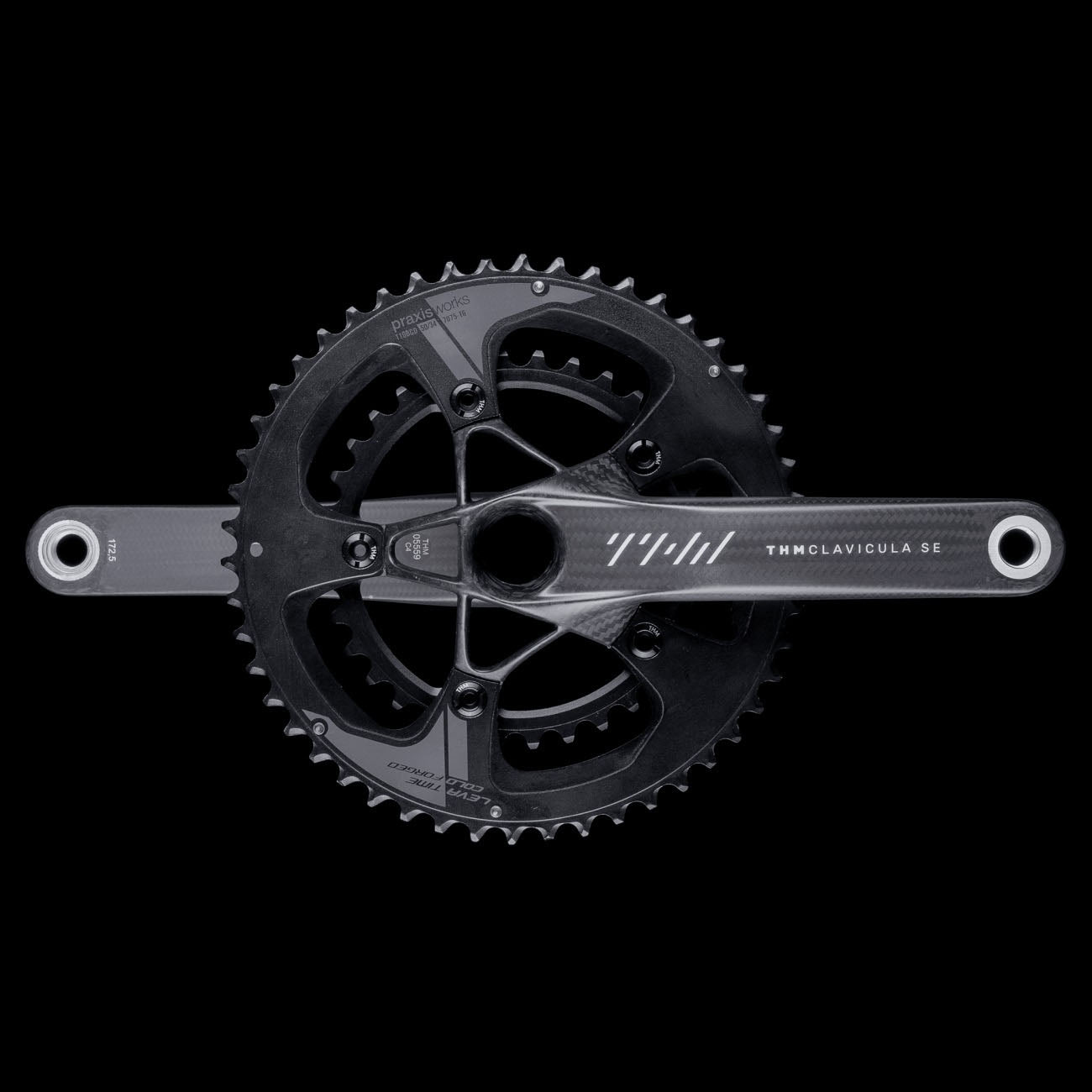

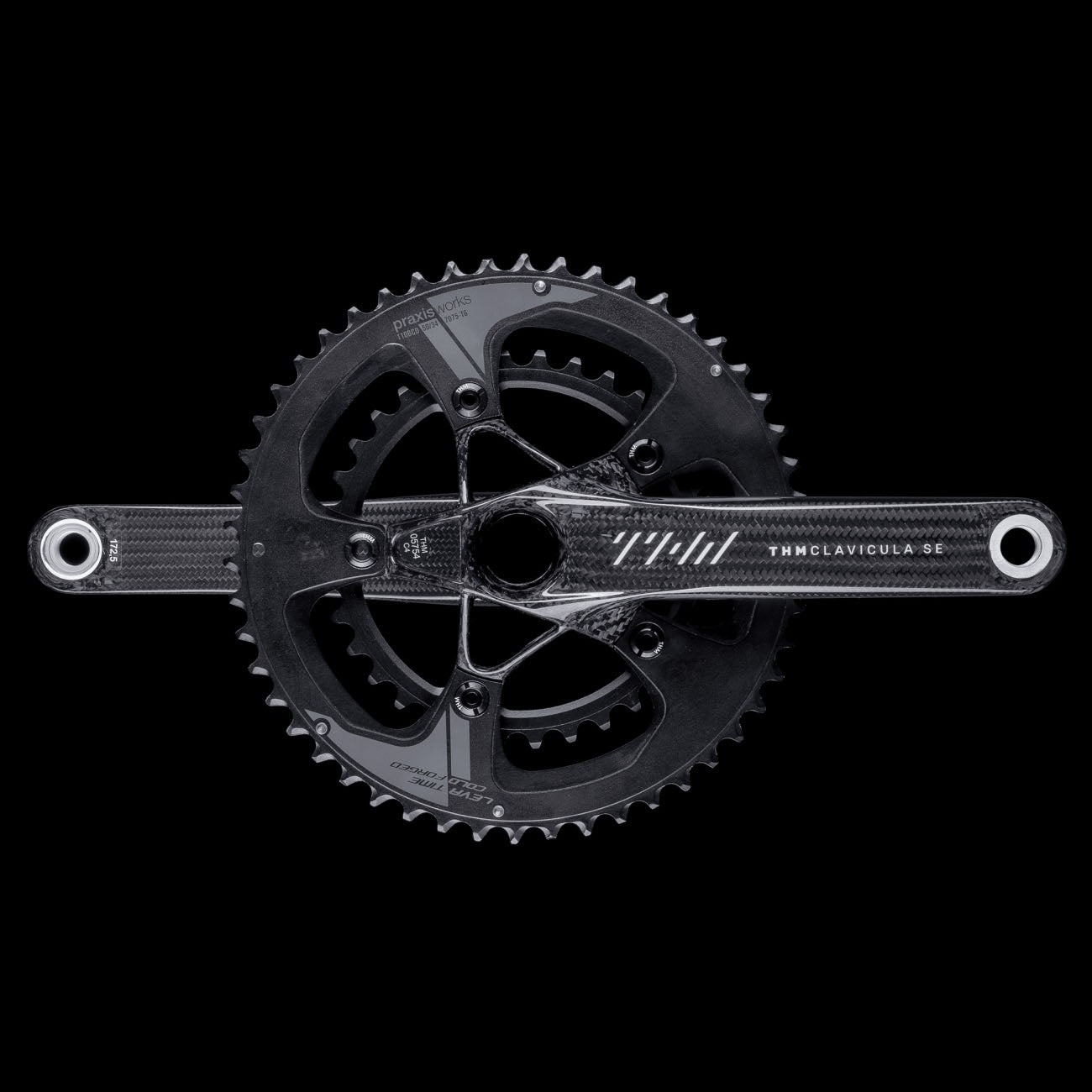

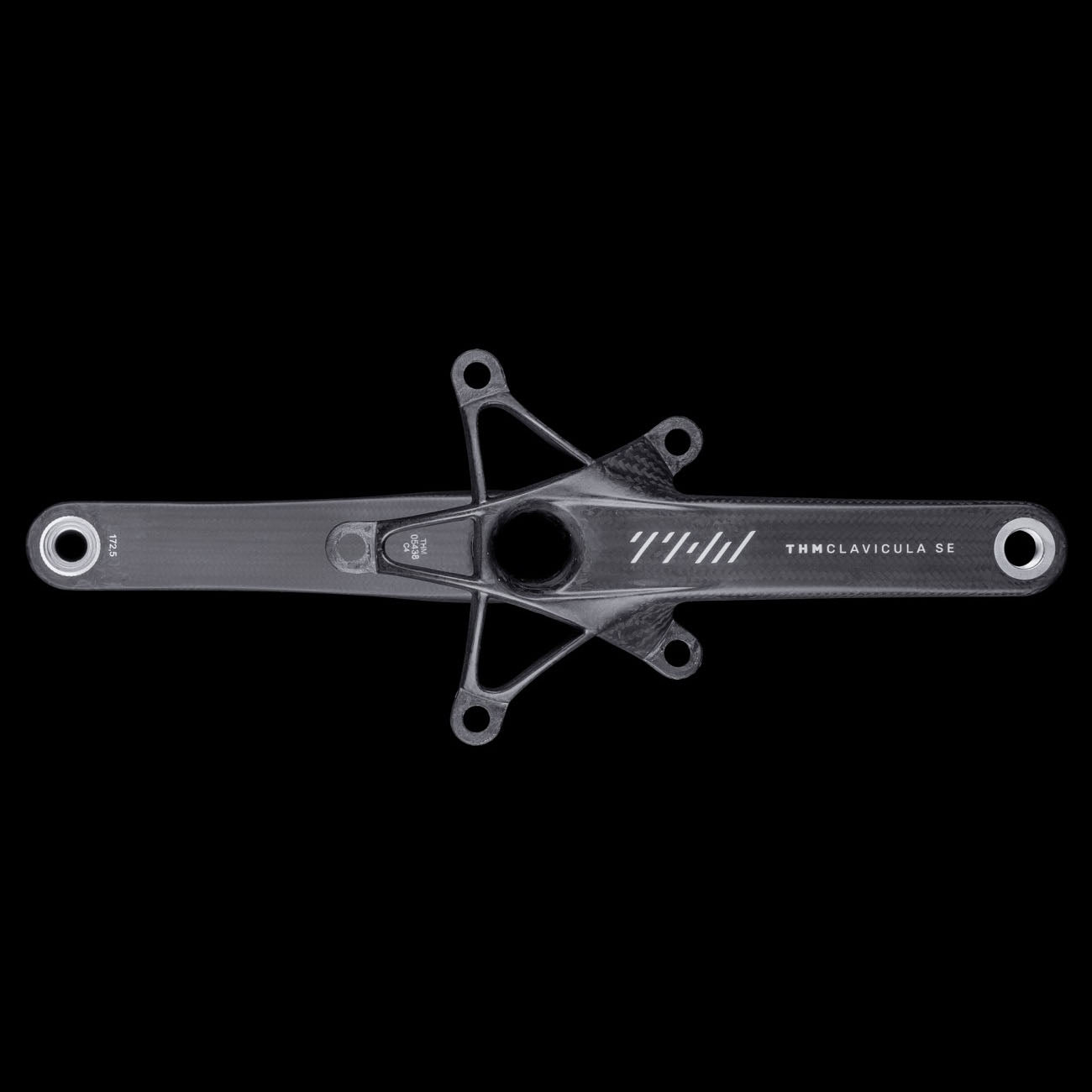

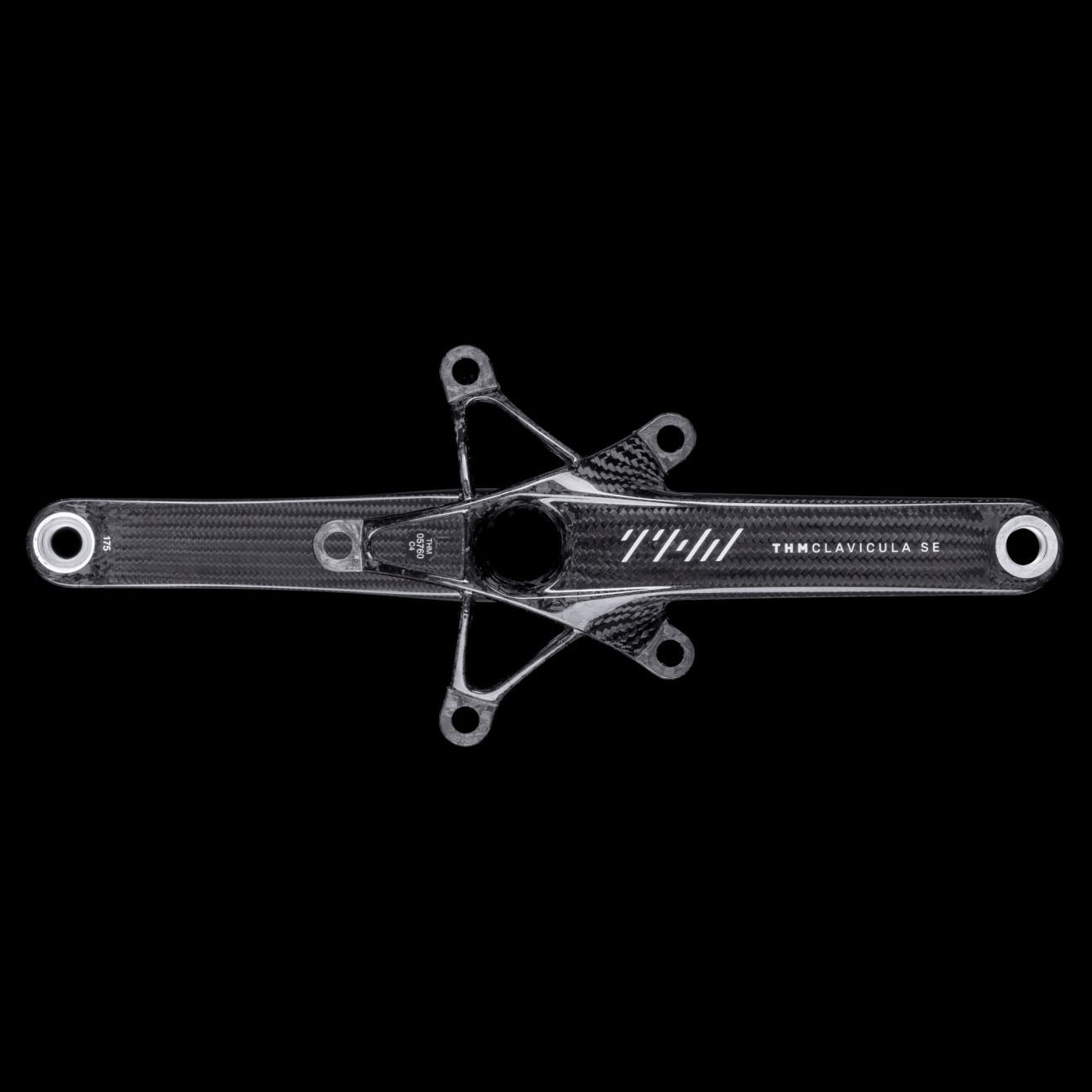

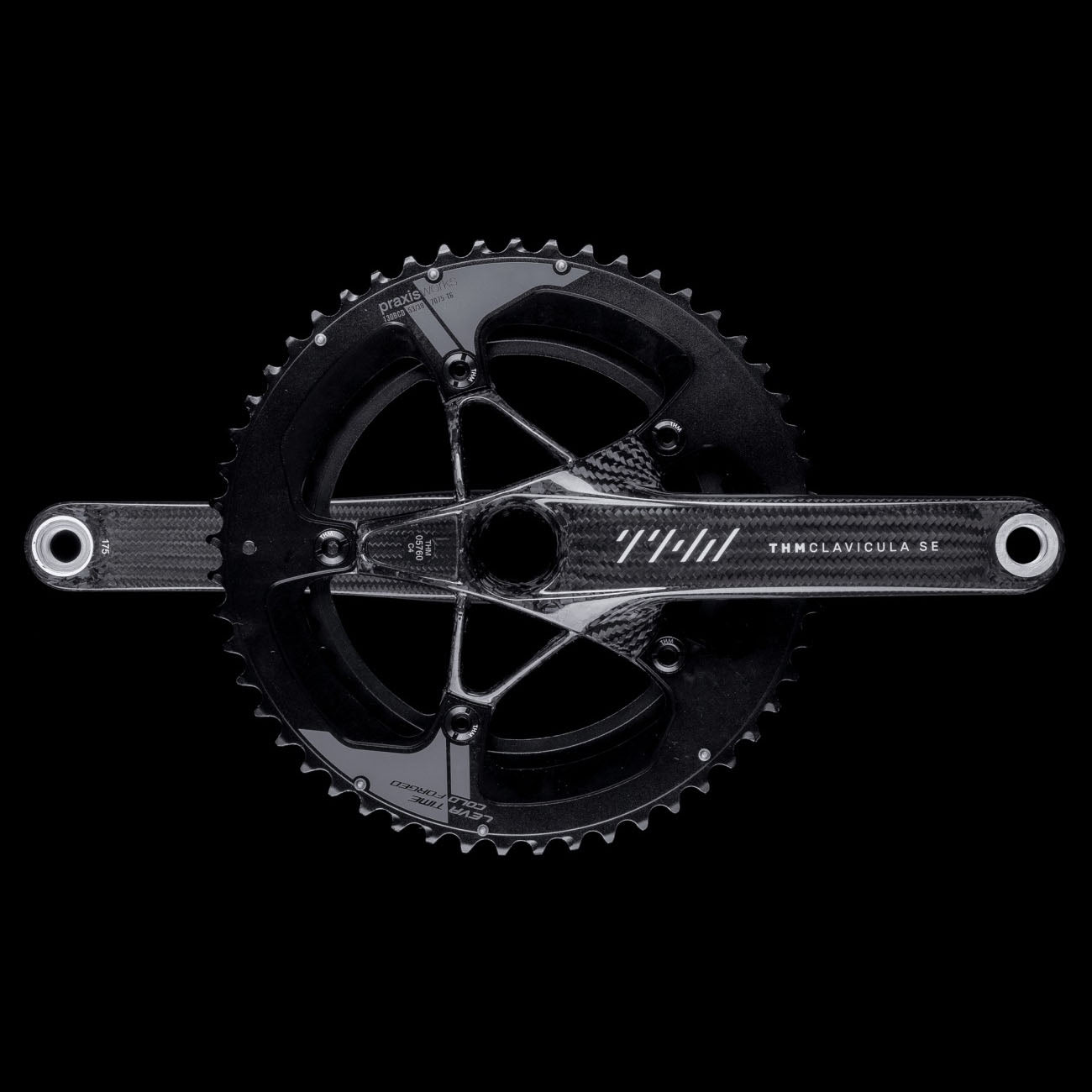

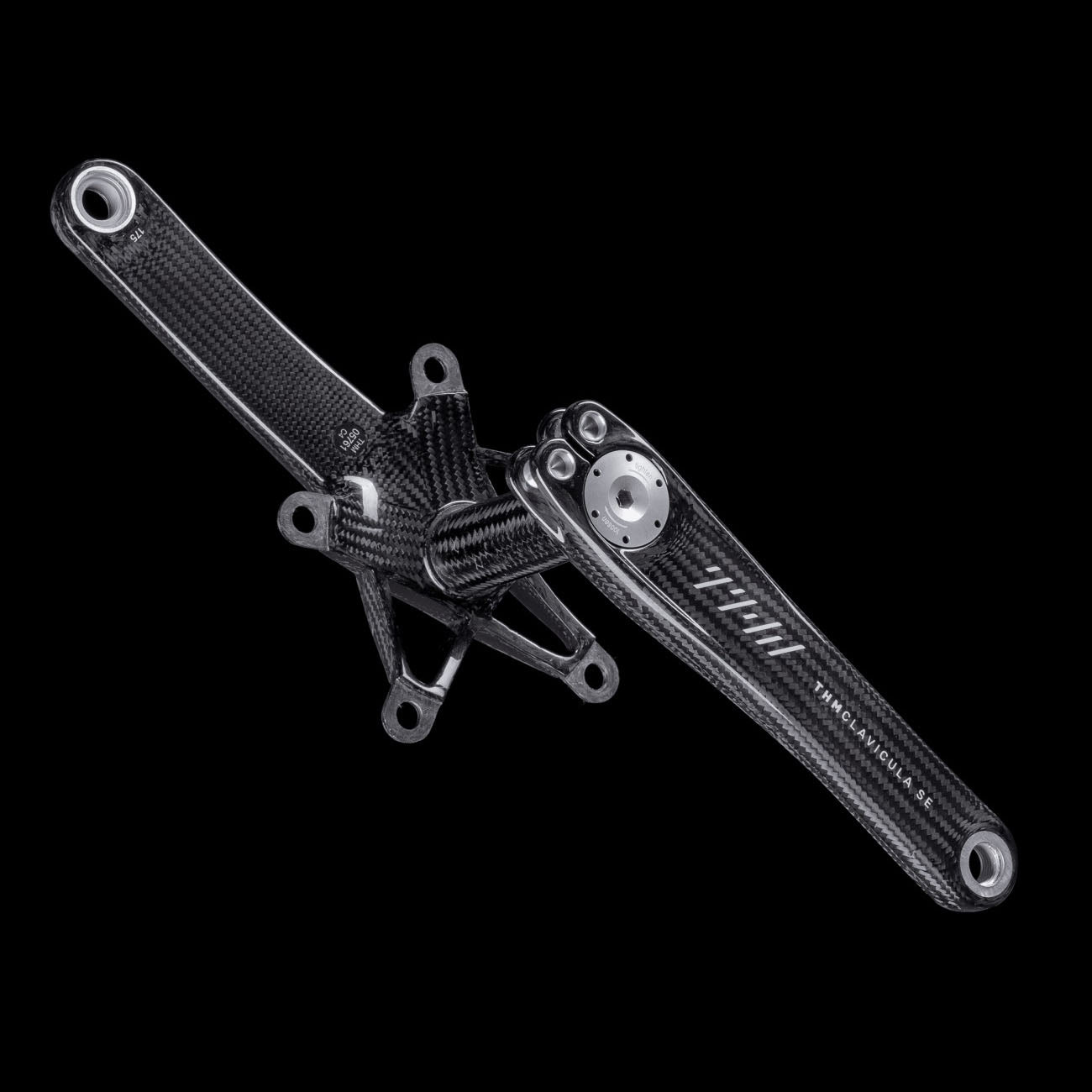

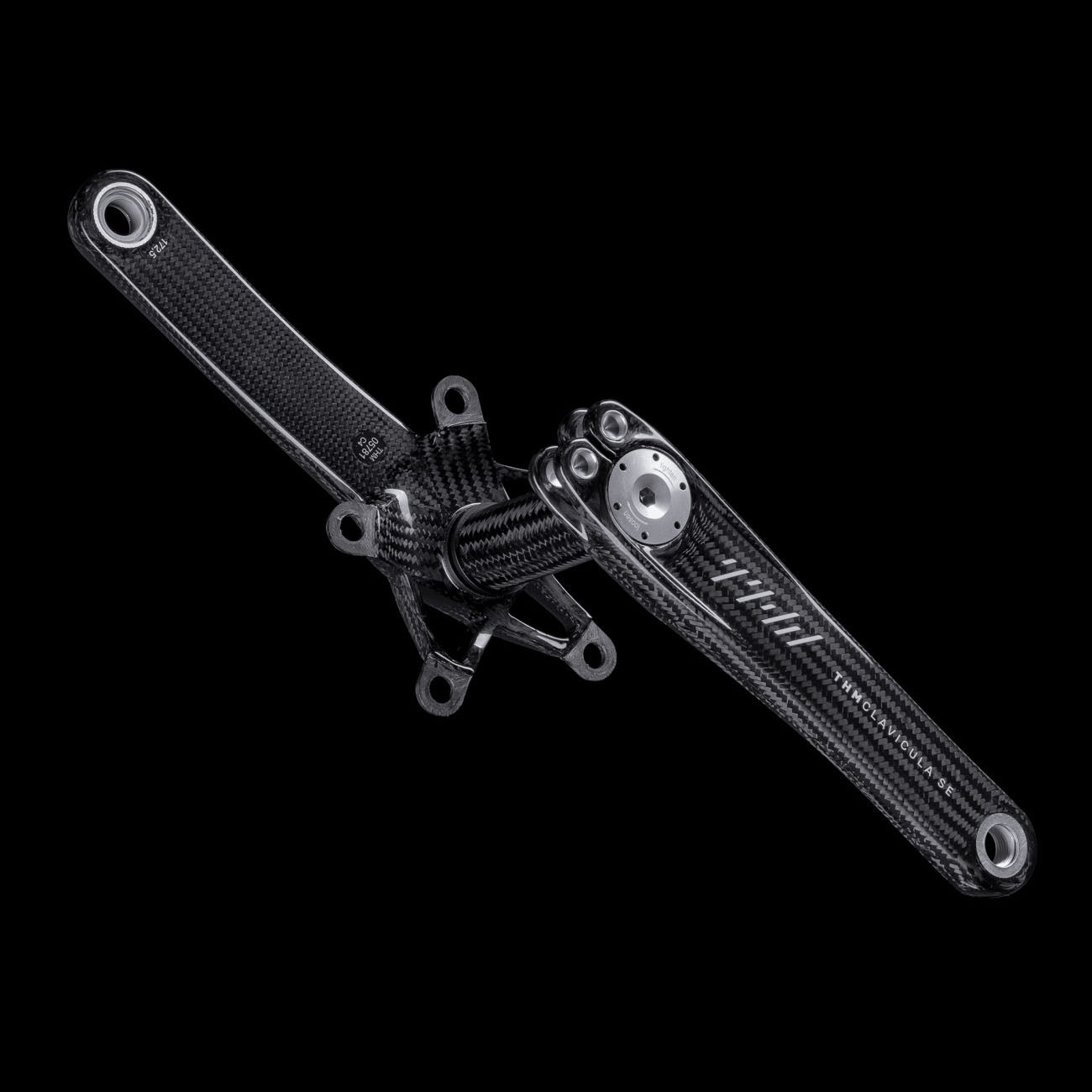

THM - CLAVICULA SE CRANK ROAD WITH POWER

$3,450.00

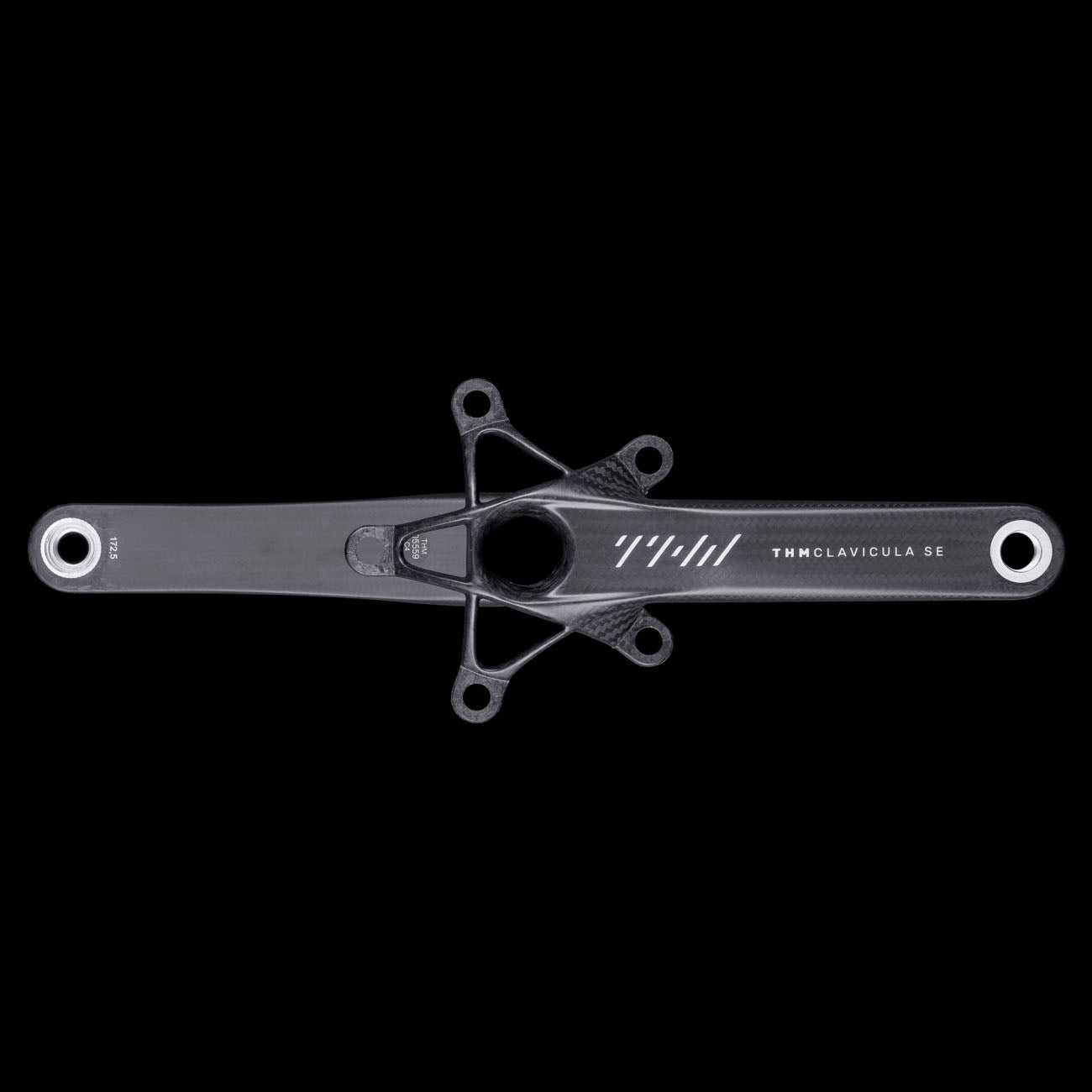

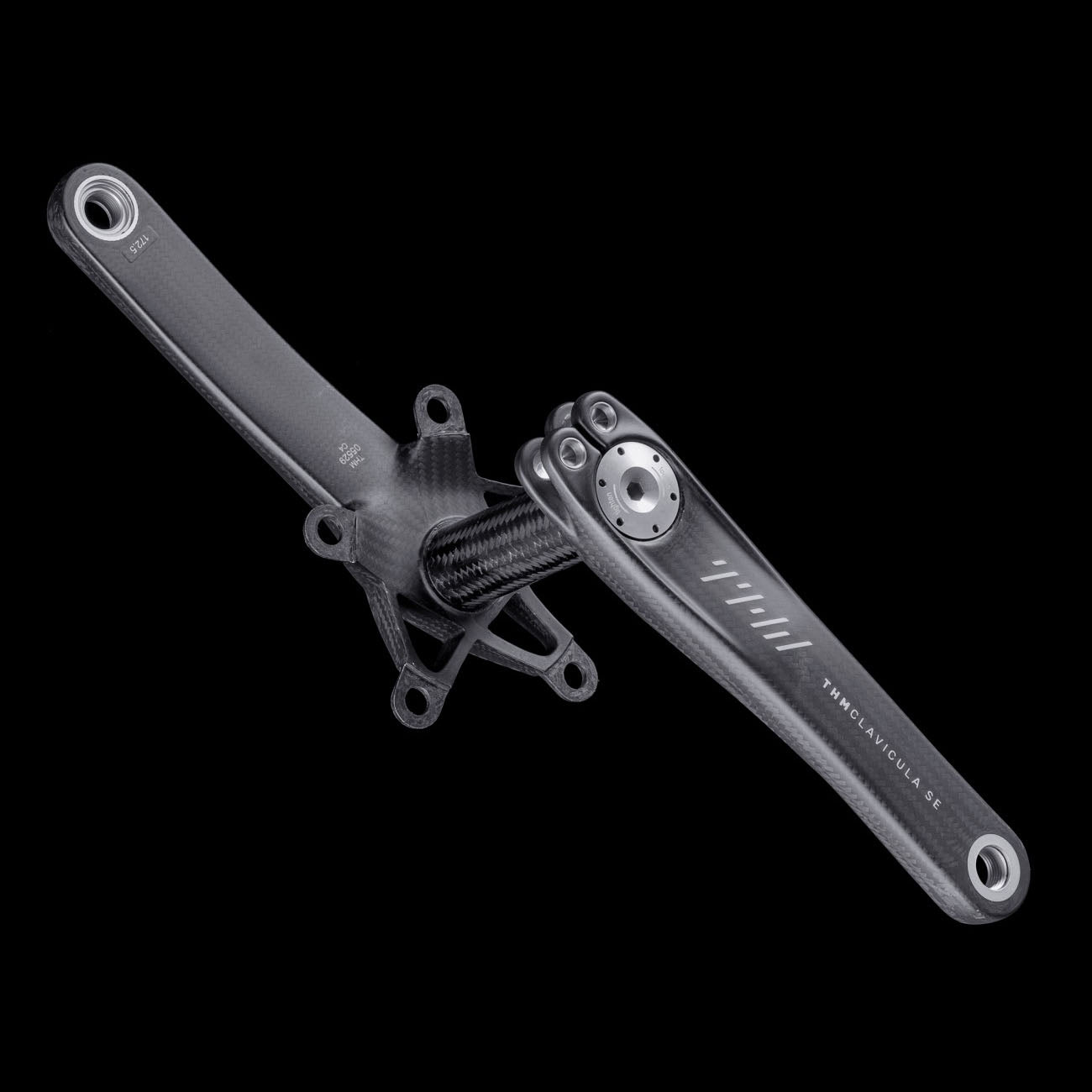

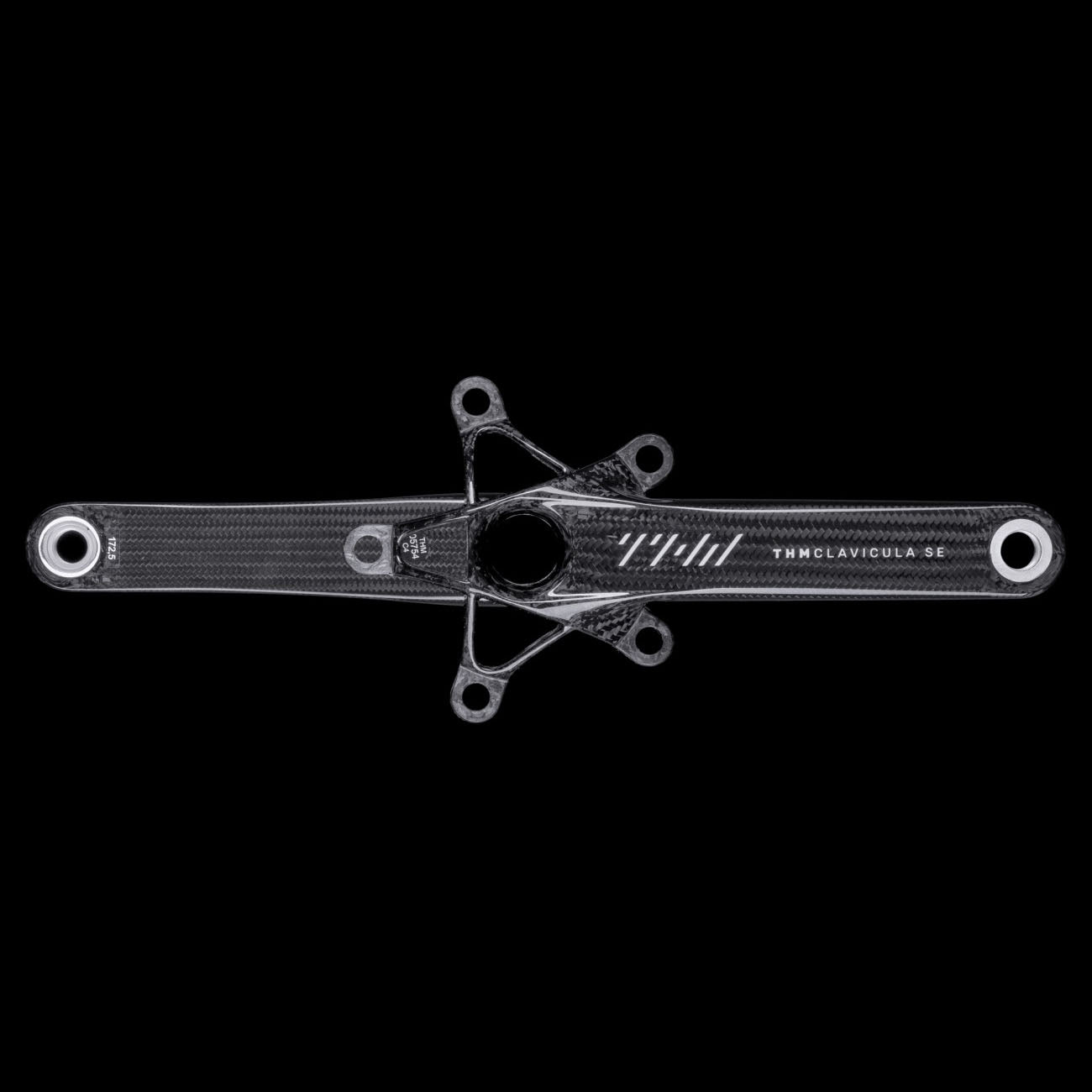

THM CLAVICULA SE POWERMETER

Clavicula sine exceptione — No rule without exception!

Our top-line, full-carbon crank is the benchmark for lightweight crank sets for years. With adding strain gauges and a small light electronic module in the axle, powered by a lightweight rechargeable li-ion battery, we achieved to keep the additional weight for the powermeter feature for our Clavicula SE under 27 g. Furthermore you are free to ride your desired lightweight pedals.

In total this leads with only 320 g for compact and 329 g for standard to the lightest powermeter on the market.

TECHNICAL INFO

Weight	about 302 g (0.67 lb) for cranksystem Standard and about 293 g (0.65 lb) for cranksystem Compact
Mounting	fits any frame with standard 68 mm BSA shell. Available for BB30, BB30A, Pressfit30, Shimano Pressfit, Italian threading, BB386 EVO, BBright™-Pressfit BBright™ Direct Fit (only Cervelo frame R5ca) also available BB 386 (only AX Lightness frame ViAL EVO) also available

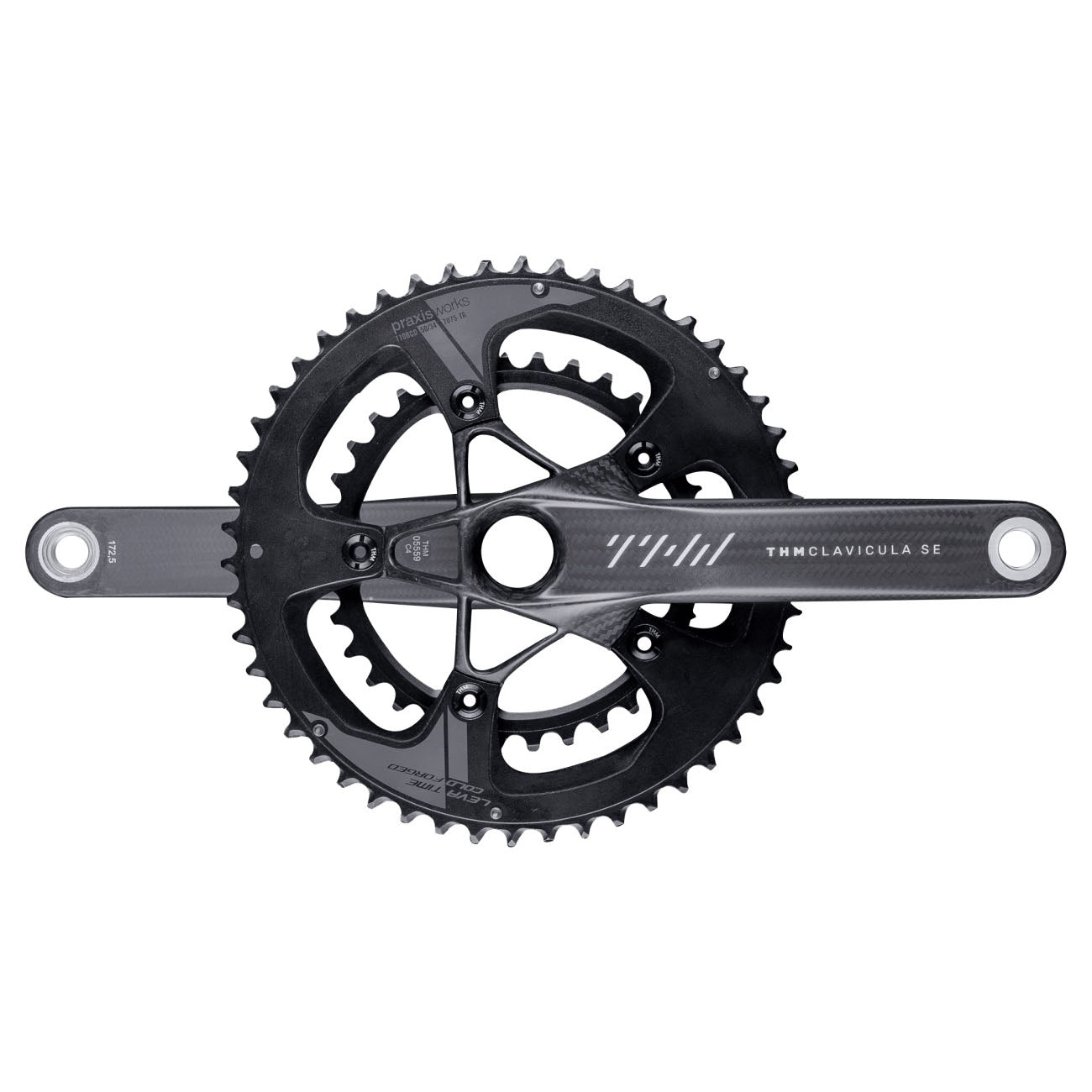

Chainrings	THM-Carbones recommend Praxis Works (not included)
Q-Factor	148 mm
Chainline	43,5 mm
Inner width of the cranks	118 mm
Available lengths	170, 172,5 or 175 mm
Max. permissible total weight (rider+bicycle+luggage)	120 kg (264 lb)

THM	CLAVICULA SE POWERMETER
Crankset:	CLAVICULA SE Compact or Standard
Weight (±5%):	320 g compact; 329 g standard (without chainrings)
Diameter axle:	30 mm
BCD:	5 bolt 110 mm or 130 mm
Sensor position:	Integrated in the axle (measures leftside)
Measurement:	Power, Cadence, Torque effectiveness, Pedal Smoothness (L)
Power range:	0 W – 1999 W
Accuracy:	+/- 2 %
Connectivity:	ANT+; Bluetooth LE
Handheld	ANT+ or Bluetooth compatible bike computer or smartphone
App	Team ZWATT Power Meter
Manufacture electric module	SENSITIVUS gauge
Firmware:	Firmware updates via App
Battery	Integrated Rechargeable Li-ion battery
Runtime	150 h
Waterproofing:	IP 67
