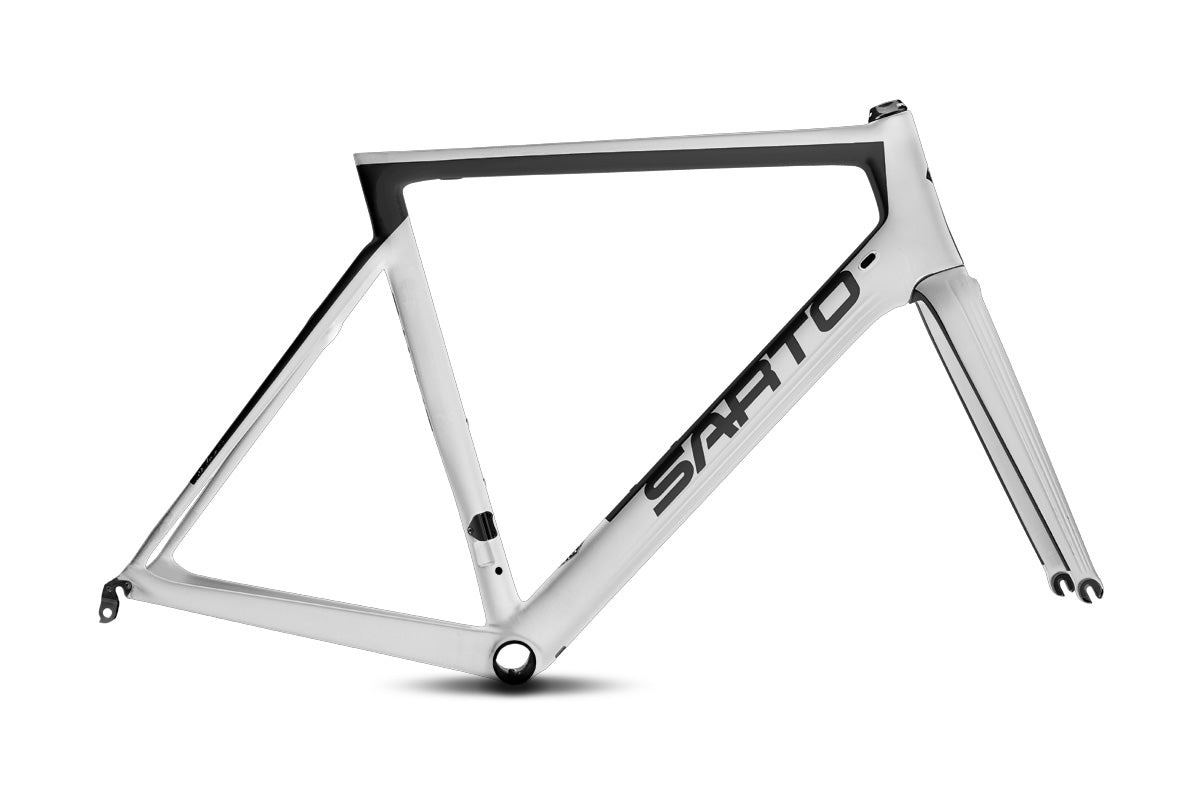

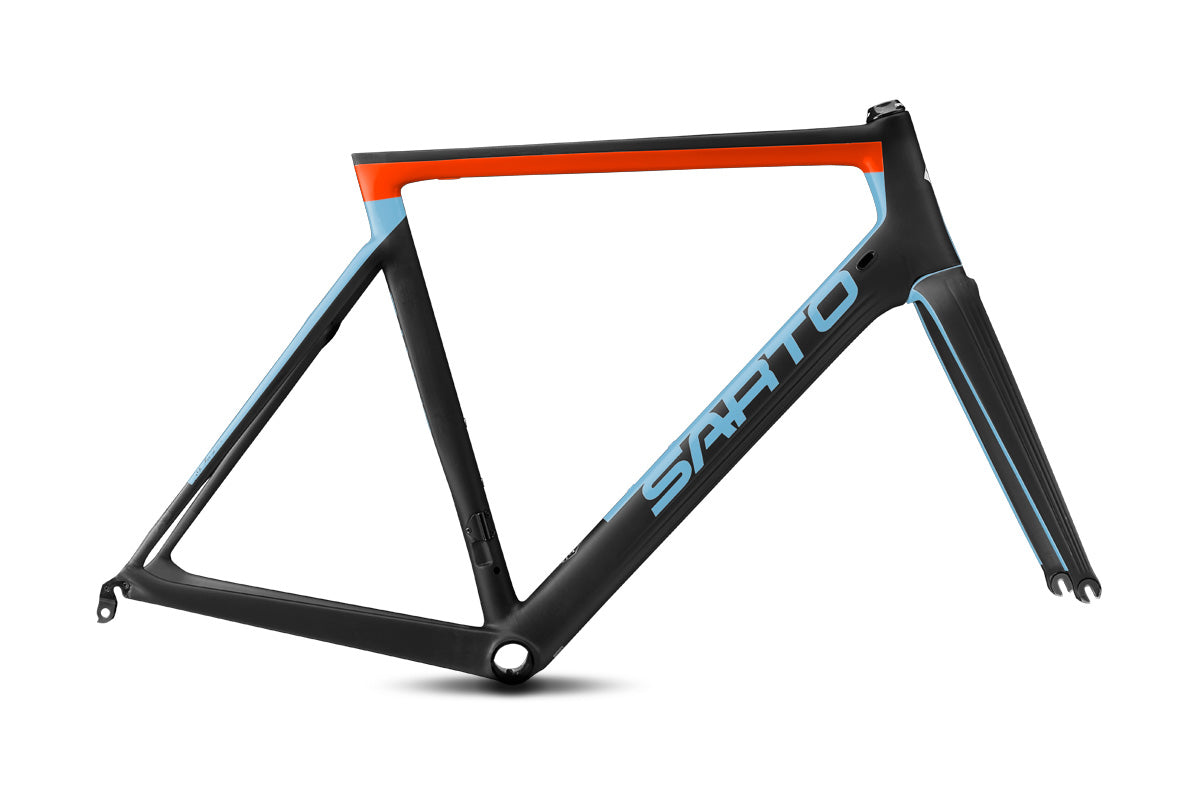

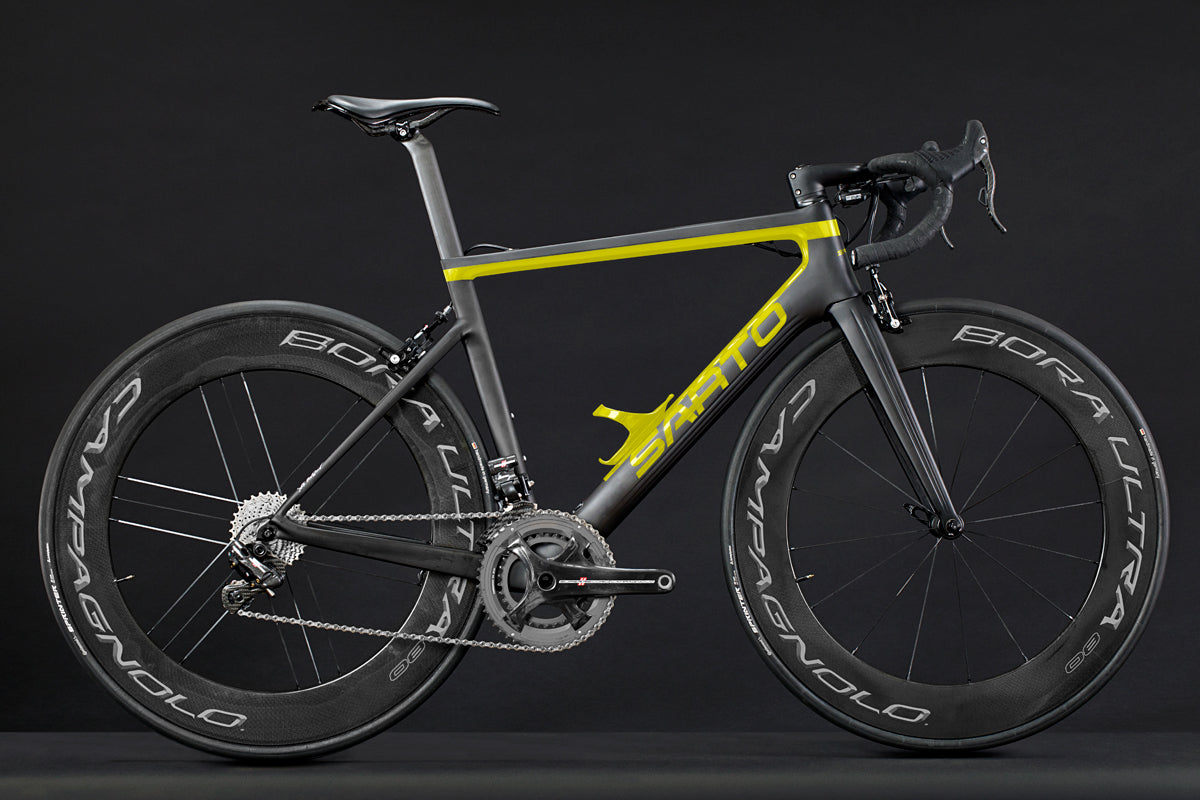

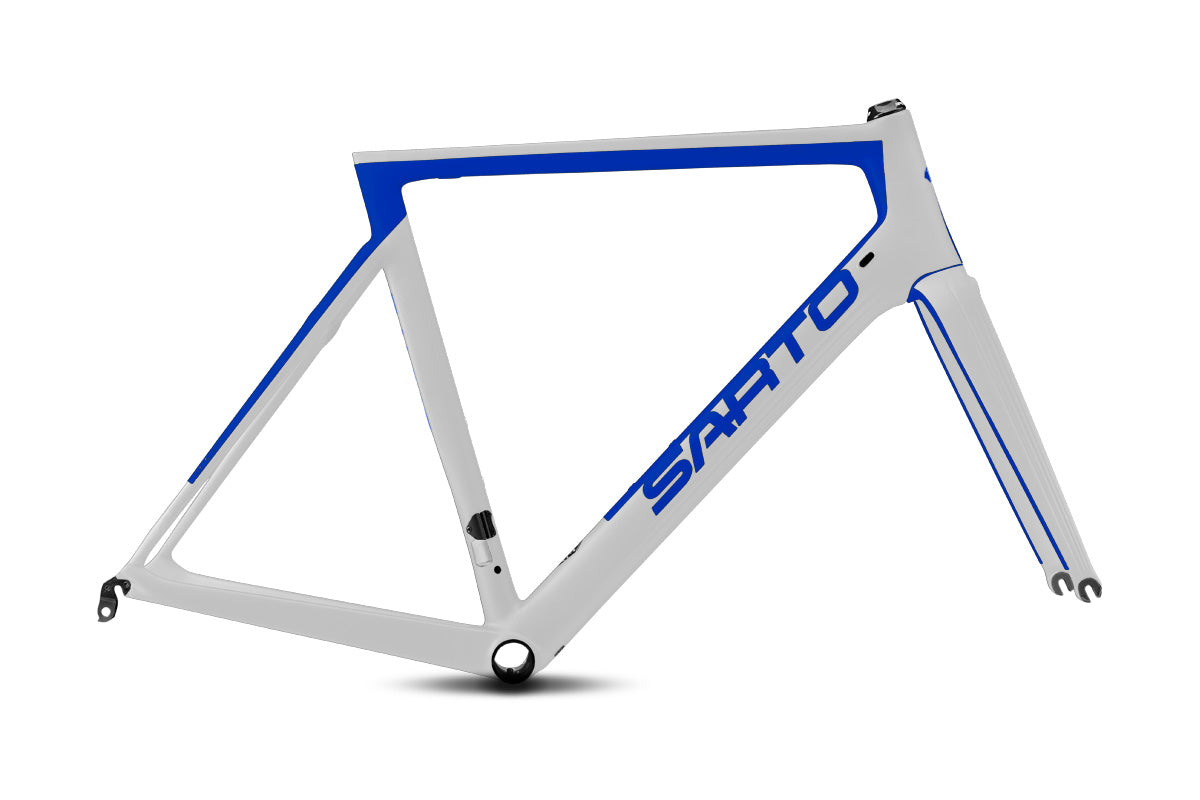

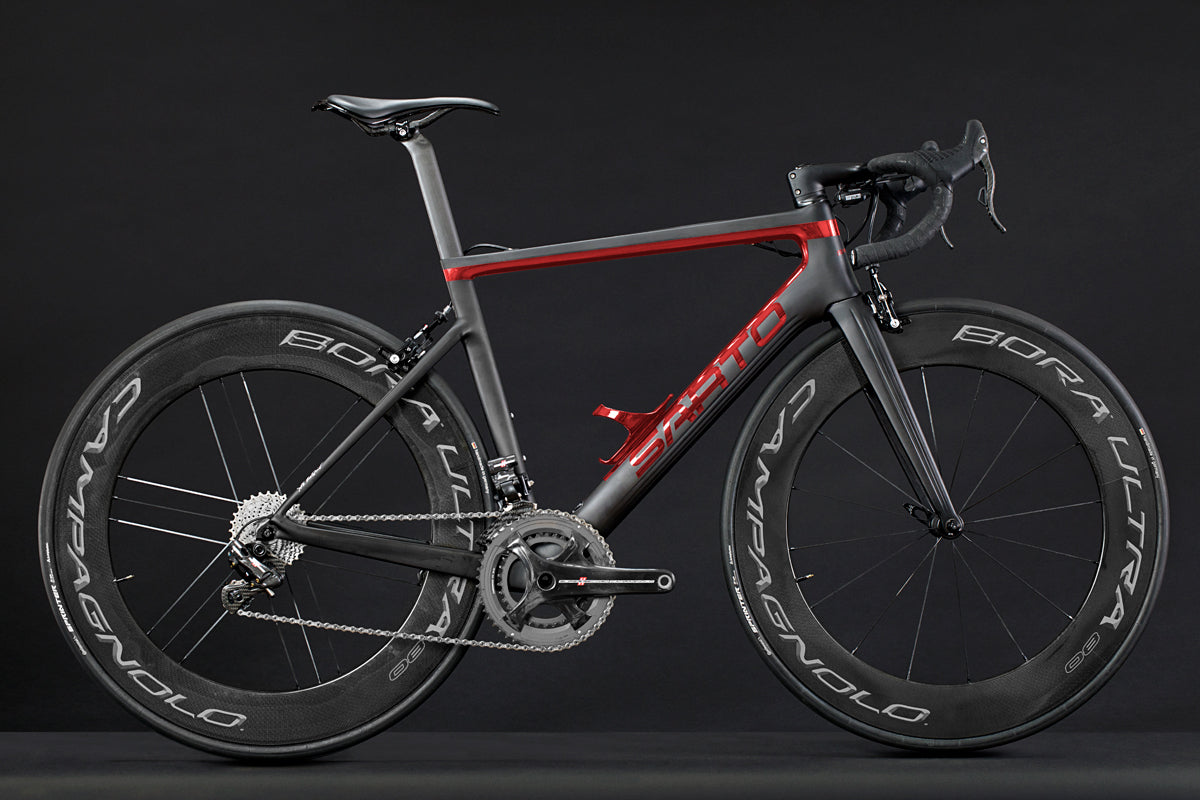

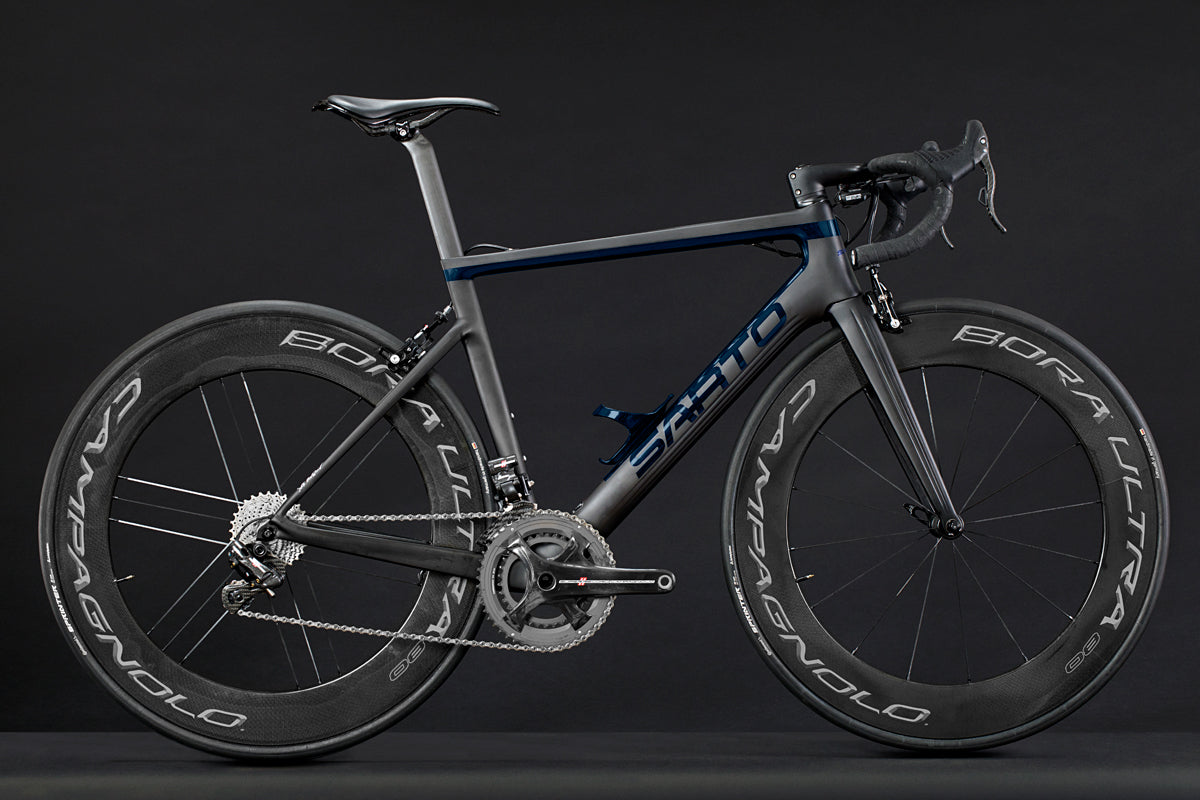

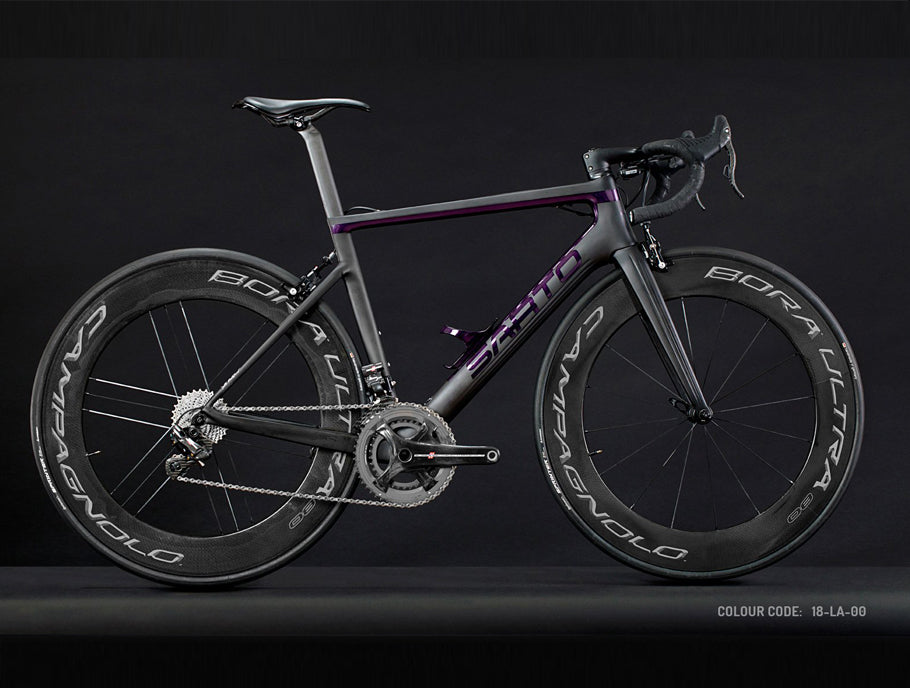

Sarto - Lampo Frameset

$7,000.00

THE FASTEST Born from the need to satisfy the requirements of the fastest and most powerful cyclists, Lampo, available in both Direct Mount and Disc brakes versions, is the custom carbon frame by Sarto Srl, which better combines aerodynamic features with stiffness into a unique bicycle.

Through careful CFD (Computational Fluid Dynamic) analysis, every profile of the tube set that forms our Lampo has been optimized from the aerodynamic point of view. This brand new Lampo uses “Triple Edge” technology on its down tube, fork and top tube, consisting of special tube shaping. “Triple edge” technology allows to control the airflow around the stripes and delays the detachment of the outer layer from the surface of the tube so that the air can flow with less resistance. This effect is very similar to that of the dimples on a golf ball.

The down tube that integrates the fork, ISOFLOW seat stays, internal cable routing, seat tube with Kamm tail aero profile and Triple Edge Technology are just some of the most striking aspects resulting from aerodynamic studies. In addition to these peculiar characteristics that identify Lampo, the high stiffness of the frame enhanced by the integrated oversized seat tube minimizes the energy dissipation.

TECHNICAL SPECS
CUSTOM MADE	.
stiffness value:	120 N/mm
outer lamination:	UD
inner lamination:	M46J/M55J
head tube:	1”1/8 - 1”½
PRESS FIT 86.5 bottom bracket	.
internal brake and gear cables guide	.
integrated seat clamp	.
direct mount brakes	.
